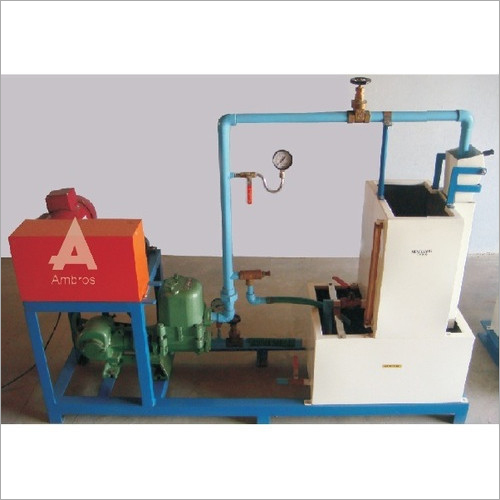

Multistage Centrifugal Pump Test Rig

Multistage Centrifugal Pump Test Rig

1000-800000 INR/Unit

Product Details:

  • Color Orange, Blue and White
  • Product Type Centrifugal Pump Test Rig
  • Dimension(L*W*H) 1500 x 1000 x 80 mm Millimeter (mm)
  • Material Metal
  • Warranty 1 Year
  • Supply Ability : 10 Unit Per Day
  • Click to view more
X

Price And Quantity

  • 100000.00 - 800000.00 INR/Unit
  • 1000-800000 INR/Unit
  • 1 Unit

Product Specifications

  • 1500 x 1000 x 80 mm Millimeter (mm)
  • Metal
  • 1 Year
  • Centrifugal Pump Test Rig
  • Orange, Blue and White

Trade Information

  • 10 Unit Per Day
  • 15-30 Days
  • All India

Product Description

We are a well-renowned manufacturer, exporter and supplier of Multistage Centrifugal Pump Test Rig. This rig is manufactured under the strict guidance of our dedicated professionals using high quality components with the aid of progressive techniques. The offered rig is extensively used in polytechnic and engineering college labs to measure the performance of multistage centrifugal pump. Furthermore, the provided Multistage Centrifugal Pump Test Rig can be bought from us at market leading prices.




Features:

  • Rigid structure
  • Compact built
  • Easy to setup
  • Simple to operate



EXPERIMENTS:-

  • Speed Vs Discharge
  • Head Vs Discharge at various speeds
  • Efficiency curves at various speed and heads



FEATURES:-

  • Closed loop water circulation
  • Compact & stand alone set-up
  • MS Excel sample calculation program on demand
  • Stainless Steel tanks and wetted parts
  • Superb painted structure
  • Simple to Operate & Maintain



UTILITIES REQUIRED:-

Electric Supply: - Provide 230 +/- 10 VAC, 50 Hz, Single Phase Electric Supply with proper earthing. (Neutral - Earth voltage less than 5 VAC), 5 A, three pin socket with switch for pump.

Water Supply: Tap water connection ½" BSP. Distilled water @ 80 Ltrs. (Optional extra cost)



TECHNICAL SPECIFICATIONS: -

  • Pump (2 Nos.) : Kirloskar, Capacity 1 HP Speed 2800 RPM (max.) Head 12 m (max.)
  • Drive : DC Drive along with non-contact type Digital RPM Indicator
  • Supply Tank : Capacity 150 Ltrs.
  • Measuring Tank : Capacity 100 Ltrs. fitted with Piezometer Tube & Scale
  • Piping : GI / PVC
  • Stop Watch : Electronic
  • Control Panel : With required electrical instrumentation
The whole Set-up is well designed and arranged in a good quality painted structure.
